Chapter Guide

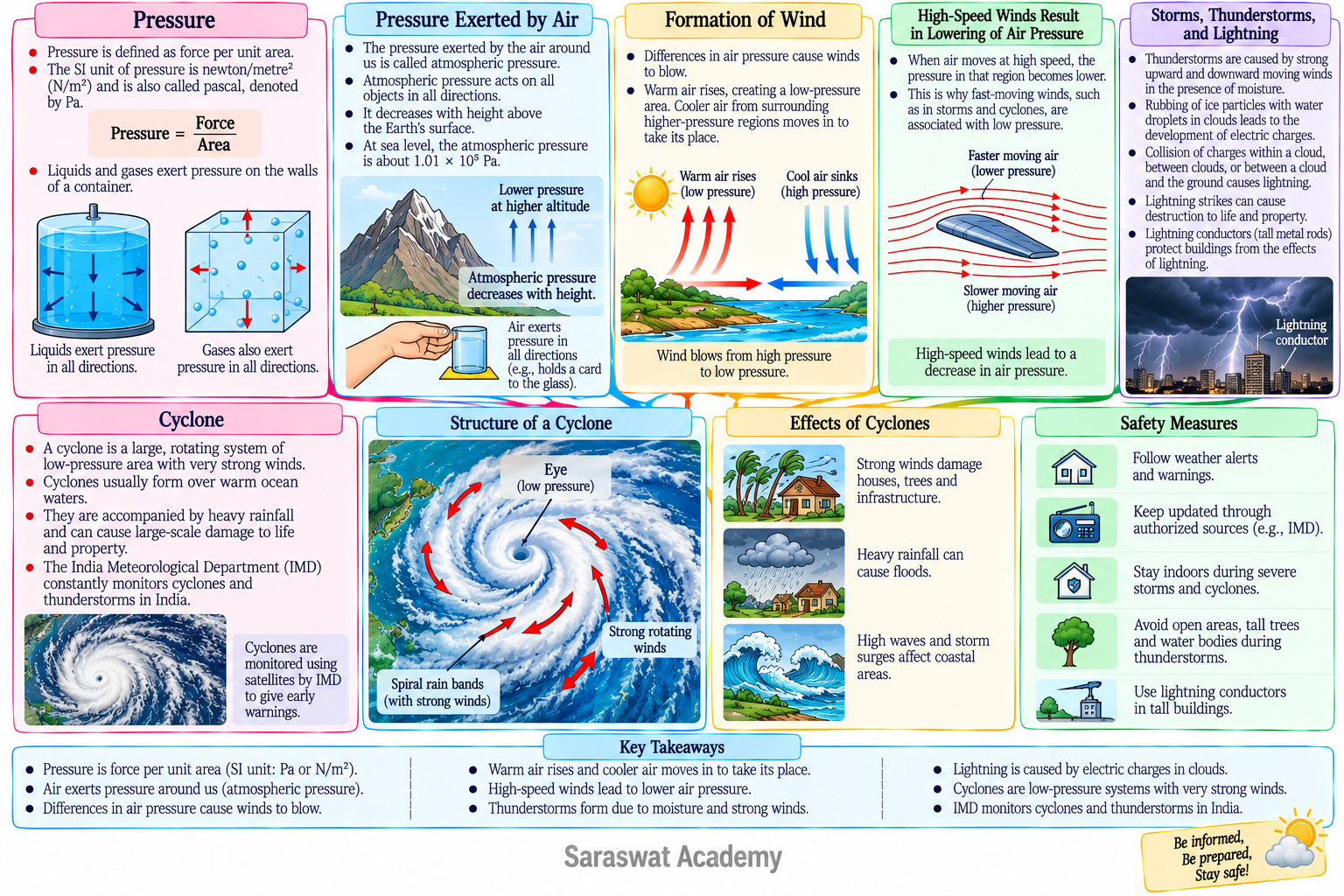

Chapter Overview
This chapter explains the relationship between force, pressure, air,
and liquids. It also explains how differences in air pressure produce
winds, storms, thunderstorms, and cyclones.
1. Pressure
Pressure is the force acting per unit area.
Pressure = Force / Area
The SI unit of pressure is pascal (Pa), which is equal to
newton per square metre (N/m2).
For the same force, pressure increases when the area of contact decreases.
This is why a sharp knife cuts more easily than a blunt knife and why the
pointed end of a nail can be driven into wood more easily.
2. Pressure Exerted by Liquids
Liquids exert pressure on the bottom as well as the sides of
their containers. In fact, liquids exert pressure in all directions.
The pressure exerted by a liquid increases with the
height of the liquid column. This is why overhead water tanks
are placed at a height to provide better water pressure in taps.
The pressure of water is also greater near the bottom of a dam, which is why
dams are made with a broader base.
3. Pressure Exerted by Air
The layer of air surrounding the Earth is called the
atmosphere. Air exerts pressure on objects in all directions.
The pressure exerted by the surrounding air is called
atmospheric pressure.
A rubber sucker sticks to a smooth surface because the air pressure outside
the sucker is greater than the pressure inside it.
4. Formation of Wind
Air moves from a region of higher pressure to a region of lower
pressure. Differences in air pressure therefore cause winds to blow.
A greater pressure difference generally produces faster-moving air.
During the day, land heats up faster than water. Warm air above the land rises,
creating a low-pressure region, and cooler air from the sea moves towards the
land. This produces a sea breeze.
At night, the land cools faster than water. A low-pressure region develops
over the sea, so air moves from the land towards the sea, producing a
land breeze.
5. High-Speed Winds and Lower Air Pressure
High-speed winds are associated with lower air pressure.
When fast-moving air passes over a roof, the pressure above the roof can
become lower than the pressure inside the building. A large pressure
difference may cause a weak roof to be blown away.
6. Storms and Thunderstorms
When land becomes strongly heated, warm and moist air rises and creates a
low-pressure area. Cooler surrounding air moves in, gets heated, and rises.
This continuous circulation can produce strong winds and clouds.
A storm is associated with strong winds and rainfall.
Under suitable conditions, electrical charges develop within clouds.
When opposite charges suddenly discharge, a bright flash called
lightning occurs. The rapid heating and expansion of air
around lightning produces the sound called thunder.
A storm accompanied by lightning and thunder is called a
thunderstorm.
7. Lightning and Safety
Lightning can be dangerous and may cause fires, damage buildings, and injure
or kill living beings. During lightning, avoid tall objects and open water.
If outside, take a low position and minimise contact with the ground. A car
or bus provides comparatively greater safety.
A lightning conductor is a metal rod installed on a building
to provide a safe path for electric charges to reach the ground.
8. Cyclones
A cyclone is a large rotating system of clouds, strong
winds, and rain that forms over warm ocean waters around a very
low-pressure area.
Warm, moist air rises over the warm ocean. As water vapour condenses, heat is
released, causing more air to rise and lowering the pressure further. Air from
surrounding regions rushes towards the low-pressure area. The Earth's rotation
causes the moving air to spin, leading to the formation of a cyclone.
The centre of a cyclone is called the eye. The eye has the
lowest pressure and relatively calm winds, while the surrounding region has
very strong winds and heavy rainfall.
9. Effects and Safety During Cyclones
Cyclones can cause strong winds, heavy rainfall, flooding, storm surges,
landslides, damage to buildings and crops, fallen trees, and power
disruptions.
People in cyclone-prone areas should follow official weather warnings, keep
an emergency kit ready, and move to a designated cyclone shelter
when advised. The India Meteorological Department (IMD)
monitors cyclones and issues warnings in India.
Key Points to Remember
- Pressure is force per unit area.
- The SI unit of pressure is pascal (Pa).
- For the same force, smaller area produces greater pressure.
- Liquids exert pressure in all directions.
- Liquid pressure increases with the height of the liquid column.
- Air exerts atmospheric pressure in all directions.
- Air moves from high pressure to low pressure.
- Differences in air pressure cause winds.
- High-speed winds are accompanied by reduced air pressure.
- Lightning is caused by a sudden discharge of electric charges.
- A cyclone forms over warm ocean waters around a very low-pressure area.
- The centre of a cyclone is called its eye.
- A lightning conductor provides a safe path for electric charges to reach the ground.
Learn Clearly
Important Concepts and notes
1. Pressure
Pressure is the force acting per unit area.
Pressure = Force / Area
The SI unit of pressure is pascal (Pa), which is equal to
N/m2.
- For the same force, smaller area produces greater pressure.
- A sharp knife cuts more easily because its sharp edge has a smaller area.
- A pointed nail enters wood easily because its pointed end exerts greater pressure.
2. Pressure Exerted by Liquids
Liquids exert pressure on the bottom and sides of their containers.
In fact, liquids exert pressure in all directions.
- Liquid pressure depends on the height of the liquid column.
- Greater height of the liquid column produces greater pressure.
- Equal heights of water columns produce equal pressure, even when the containers have different widths.
The base of a dam is made broader because water pressure is very large near the
bottom. :contentReference[oaicite:0]{index=0}
3. Why Are Water Tanks Placed at a Height?
Water tanks are placed at a height so that the water has sufficient pressure
to flow through pipes to lower levels. Increasing the height of the water
column increases the pressure.
4. Atmospheric Pressure
The envelope of air surrounding the Earth is called the
atmosphere. The air around us exerts pressure called
atmospheric pressure.
- Air exerts pressure in all directions.
- Gases exert pressure on the walls of their containers.
- A rubber sucker sticks to a smooth surface because of the difference in air pressure on its two sides.
5. Wind and Air Pressure
Differences in air pressure cause winds to blow. Air moves
from a region of higher pressure to a region of lower pressure.
:contentReference[oaicite:1]{index=1}
Warm air rises because it becomes lighter, creating a
low-pressure area. Cooler air from a surrounding
high-pressure region moves towards the low-pressure region.
6. Sea Breeze and Land Breeze
| Sea Breeze |
Land Breeze |
| Occurs mainly during the day. |
Occurs mainly at night. |
| Land heats faster than water. |
Land cools faster than water. |
| Air moves from sea towards land. |
Air moves from land towards sea. |
Both are mainly caused by pressure differences between land and
sea. :contentReference[oaicite:2]{index=2}
7. High-Speed Winds and Low Pressure
High-speed winds are accompanied by reduced air pressure.
When air moves rapidly through a region, the pressure there can decrease.
The surrounding higher-pressure air can then push objects towards the
low-pressure region.
The balloon activity in the chapter demonstrates that blowing air rapidly
between two balloons creates a low-pressure region between them, causing the
balloons to move towards each other. :contentReference[oaicite:3]{index=3}
8. Thunderstorms and Lightning
Important conditions for thunderstorms include moisture and strong
winds. Strong upward and downward winds cause ice particles and
water droplets in clouds to rub against one another, producing electric
charges. :contentReference[oaicite:4]{index=4}
- Positive and negative charges become separated within clouds.
- When the build-up of charges becomes very large, a sudden flow of charges occurs.
- This produces a bright flash called lightning.
- Lightning rapidly heats the surrounding air, causing it to expand and produce thunder.
- A storm accompanied by lightning and thunder is called a thunderstorm.
9. Lightning Safety
- Stay away from tall objects during lightning.
- Do not lie flat on the ground.
- Get out of water during lightning.
- Avoid using an umbrella with a metallic rod.
- Inside a car or bus, you are comparatively safer.
A lightning conductor is a metallic rod that provides an easy
path for electric charges to pass safely into the ground, helping protect
buildings from lightning. :contentReference[oaicite:5]{index=5}
10. Cyclones
A cyclone is a large storm system that forms over
warm ocean waters. Warm, moist air rises and creates a
low-pressure area. Water vapour condenses, releasing heat, which causes more
air to rise and lowers the pressure further. Air from surrounding regions
rushes in, and Earth's rotation causes the moving air to spin. :contentReference[oaicite:6]{index=6}
11. Eye of a Cyclone
The eye is the central region of a cyclone where the pressure
is lowest. The eye generally has calm winds, while the
surrounding region experiences strong winds and heavy rainfall.
:contentReference[oaicite:7]{index=7}
12. Effects of Cyclones
- Very strong winds can damage buildings and infrastructure.
- Strong winds can push ocean water towards the shore, causing a storm surge.
- Heavy rainfall can cause floods and landslides.
- Seawater entering coastal areas can contaminate drinking water and damage farmland.
- Fallen trees and debris can block roads.
- Power outages may disrupt daily life and emergency services.
13. Cyclone Safety
- Follow weather reports and official warnings.
- Keep an emergency kit ready in cyclone-prone areas.
- Follow instructions issued by the India Meteorological Department (IMD).
- Move quickly to a designated cyclone shelter when advised.
- Weather-monitoring satellites help track cyclones and predict their paths.
These measures are specifically emphasised in the chapter for reducing the
impact of cyclones on life and property. :contentReference[oaicite:8]{index=8}
Quick Revision Table
| Concept |
Remember |
| Pressure |
Force per unit area |
| SI unit of pressure |
Pascal (Pa) = N/m2 |
| Liquid pressure |
Acts in all directions and increases with liquid-column height |
| Atmospheric pressure |
Pressure exerted by surrounding air |
| Wind |
Air moving from high pressure to low pressure |
| Sea breeze |
Sea to land, mainly during the day |
| Land breeze |
Land to sea, mainly at night |
| Lightning |
Sudden flow of electric charges producing a bright flash |
| Thunder |
Sound produced by rapid expansion of air heated by lightning |
| Cyclone |
Large rotating storm system formed over warm ocean waters |
| Eye of cyclone |
Central region with lowest pressure and relatively calm winds |
Examination Strategy
Exam Tips
1. Learn the Definition of Pressure
Remember that pressure is force acting per unit area.
The SI unit of pressure is pascal (Pa) or
N/m2.
Formula: Pressure = Force / Area
2. Understand the Effect of Area on Pressure
For the same force, a smaller area produces greater pressure,
while a larger area produces less pressure.
- Sharp knife → smaller area → greater pressure.
- Pointed nail → smaller area → greater pressure.
- Standing on loose sand → greater pressure than lying down because the contact area is smaller.
3. Remember Liquid Pressure
- Liquids exert pressure on the bottom and sides of a container.
- Liquids exert pressure in all directions.
- Liquid pressure increases with the height of the liquid column.
- The base of a dam is broader because water pressure is greater near the bottom.
4. Water Tank Questions
If asked how to obtain greater water pressure at a lower level, remember:
increasing the height of the water tank increases the pressure.
5. Atmospheric Pressure
The pressure exerted by the air surrounding us is called
atmospheric pressure.
Remember that air exerts pressure in all directions.
6. Remember the Direction of Wind
This is one of the most important points for MCQs and short-answer questions:
Air moves from a region of high pressure to a region of low pressure.
A greater pressure difference can produce faster-moving air.
7. Sea Breeze and Land Breeze
| Sea Breeze |
Land Breeze |
| Occurs mainly during the day. |
Occurs mainly at night. |
| Wind blows from sea to land. |
Wind blows from land to sea. |
| Land becomes warmer faster. |
Land cools faster. |
8. High-Speed Winds and Pressure
Remember the important relationship:
high-speed winds are accompanied by reduced air pressure.
The balloon activity in the chapter demonstrates this relationship.
9. Thunderstorm and Lightning
For questions about lightning, remember the sequence:
Strong winds → rubbing of ice particles and water droplets →
electric charges develop → sudden discharge → lightning → rapid heating
and expansion of air → thunder.
- Lightning may occur within a cloud, between clouds, or between a cloud and the ground.
- A storm accompanied by lightning and thunder is called a thunderstorm.
10. Lightning Safety
- Stay away from tall objects.
- Do not lie flat on the ground.
- Get out of water during lightning.
- Avoid umbrellas with metallic rods.
- A car or bus is comparatively safer during lightning.
11. Lightning Conductor
A lightning conductor is a metallic rod that provides an easy
path for electric charges to pass safely into the ground. It helps protect
buildings from the effects of lightning.
12. Cyclone Formation
Learn the sequence carefully because it is useful for long-answer and
diagram-based questions:
Warm ocean → warm moist air rises → low pressure develops →
surrounding air rushes in → water vapour condenses and releases heat →
air rises further → Earth's rotation makes the air spin → cyclone forms.
13. Eye of a Cyclone
The eye is the central region of a cyclone where the pressure
is lowest. Winds in the eye are relatively calm, while the surrounding region
has strong winds and heavy rainfall.
14. Cyclone Safety
- Follow weather reports and official warnings.
- Pay attention to warnings issued by the IMD.
- Keep an emergency kit ready in cyclone-prone areas.
- Move to a designated cyclone shelter when advised.
- Remember that weather-monitoring satellites help track cyclones and predict their paths.
15. Numerical Questions
For numerical problems on pressure, first write the formula:
Pressure = Force / Area
Then substitute the values with their correct units. The final answer should
be expressed in pascal (Pa) or N/m2.
16. Common Exam Traps
- Pressure is not force: pressure depends on both force and area.
- Liquids do not exert pressure only at the bottom: they exert pressure in all directions.
- Wind does not move from low to high pressure: air moves from high pressure to low pressure.
- The eye of a cyclone is not the most stormy region: it has relatively calm winds.
- Pressure unit is Pa: newton (N) is the unit of force, not pressure.
Last-Minute Revision
- Pressure = Force / Area.
- SI unit of pressure = pascal (Pa).
- Smaller area → greater pressure for the same force.
- Liquids exert pressure in all directions.
- Air moves from high pressure to low pressure.
- Warm air rises and creates a low-pressure area.
- Sea breeze → sea to land.
- Land breeze → land to sea.
- Lightning → sudden discharge of electric charges.
- Cyclone → large storm formed over warm ocean waters.
- Eye of cyclone → lowest pressure and relatively calm winds.
Continue Learning
Related Resources
